Product Details

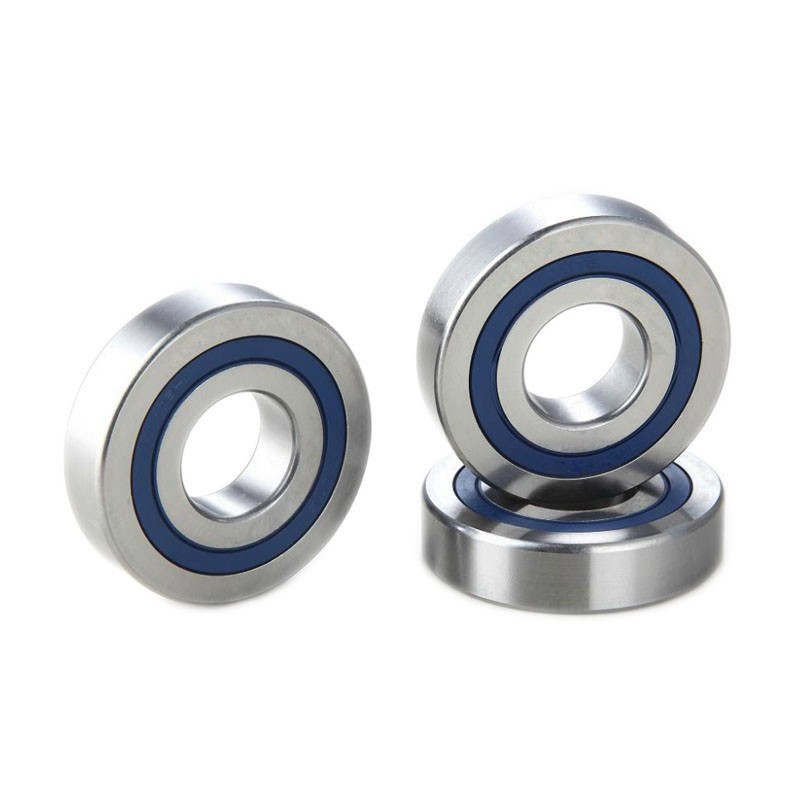

100 mm x 180 mm x 2.3740 in SKF 3220 A/C3W64 Angular Contact Bearings

Brand Name SKF
Model Number 3220 A/C3W64
Min.Order Quantity 1 pcs
Price Negotiable

Product Features

SKF 3220 A/C3W64 bearing Size Chart (mm/inches)

d73.02 mm
B36.1 mm
d1110 mm
e0.4
Y21.49
Y00.82
Dynamic load, C178 kN
Rating life coefficient, A21.4
Static load, C0265 kN
Fatigue limit load, Cu31.4 kN
Nlim (oil)3,400 rpm
Nlim (grease)2,600 rpm
Min operating temperature, Tmin-40 °C
Max operating temperature, Tmax120 °C
Characteristic cage frequency, FTF0.44 Hz
Characteristic rolling element frequency, BSF8.34 Hz
Characteristic outer ring frequency, BPF010.19 Hz
Characteristic inner ring frequency, BPFI12.81 Hz
ra max3.5 mm
CategoryRoller Bearings
Inventory0.0
Manufacturer NameNTN
Minimum Buy QuantityN/A
Weight / Kilogram0
EAN4547359541359
Product GroupB04334

100 mm x 180 mm x 2.3740 in  SKF 3220 A/C3W64 Angular Contact Bearings

100 mm x 180 mm x 2.3740 in SKF 3220 A/C3W64 Angular Contact Bearings Cad Models
